CROC LIFT
The BOAT LIFT product range includes partially submersible motorized trailers and travel lifts, able to meet the needs of operators who do not dispose of a towing and launching tank, or who wish to make the most of the ramps or inclined planes within the working area.
With the CROC LIFT series, BOAT LIFT is a pioneer on the amphibious vehicles market, offering tailor-made solutions and designed directly with the customer according to slopes, terrain characteristics, type of boats and spaces available within the boatyard.

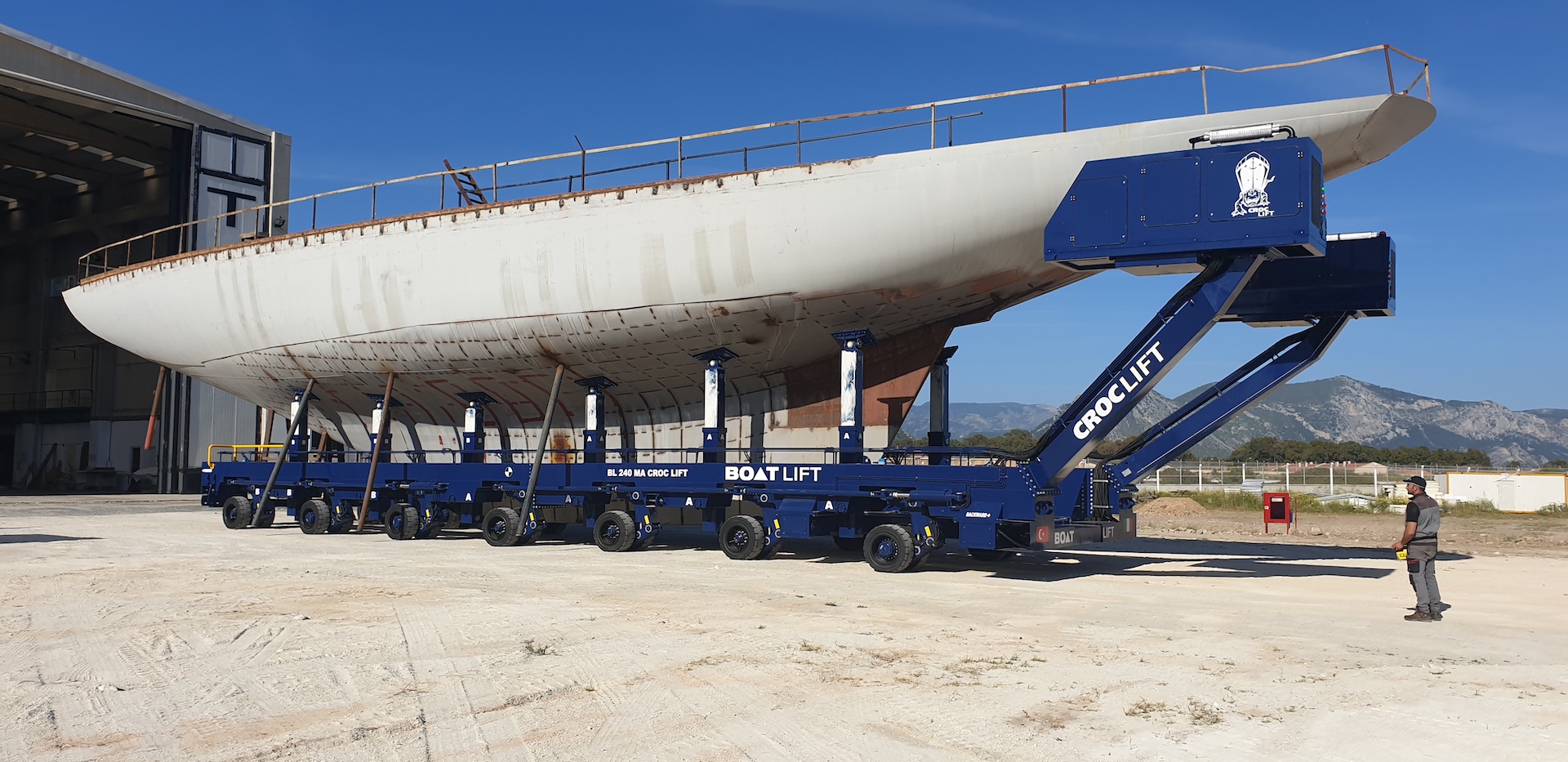

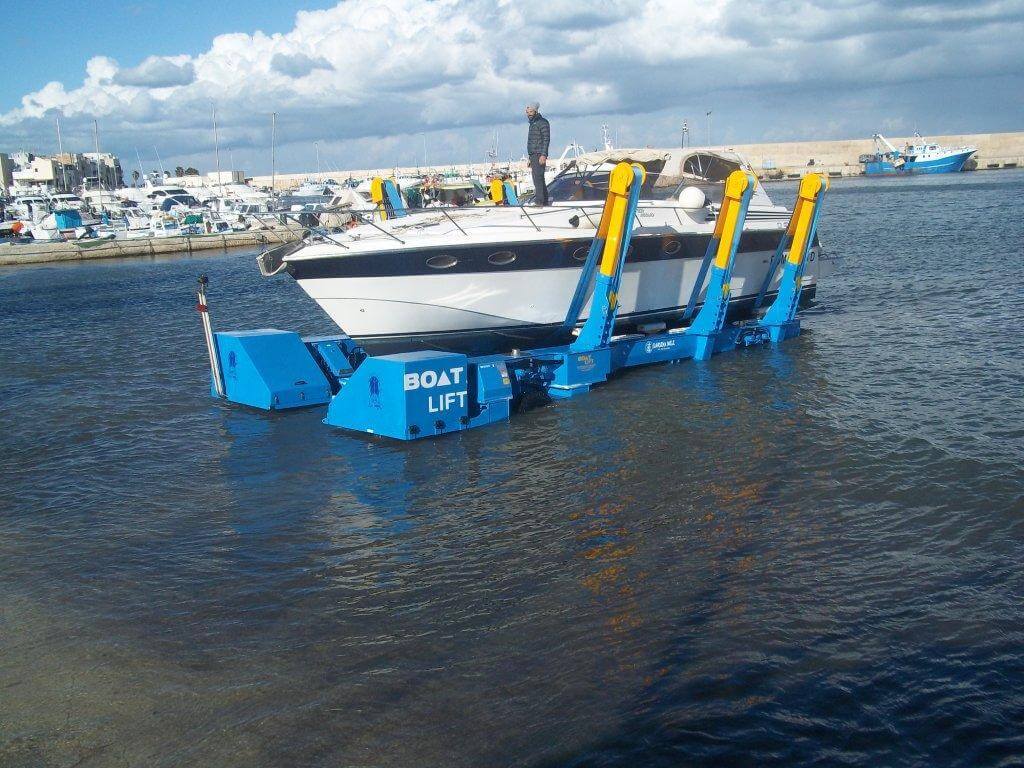

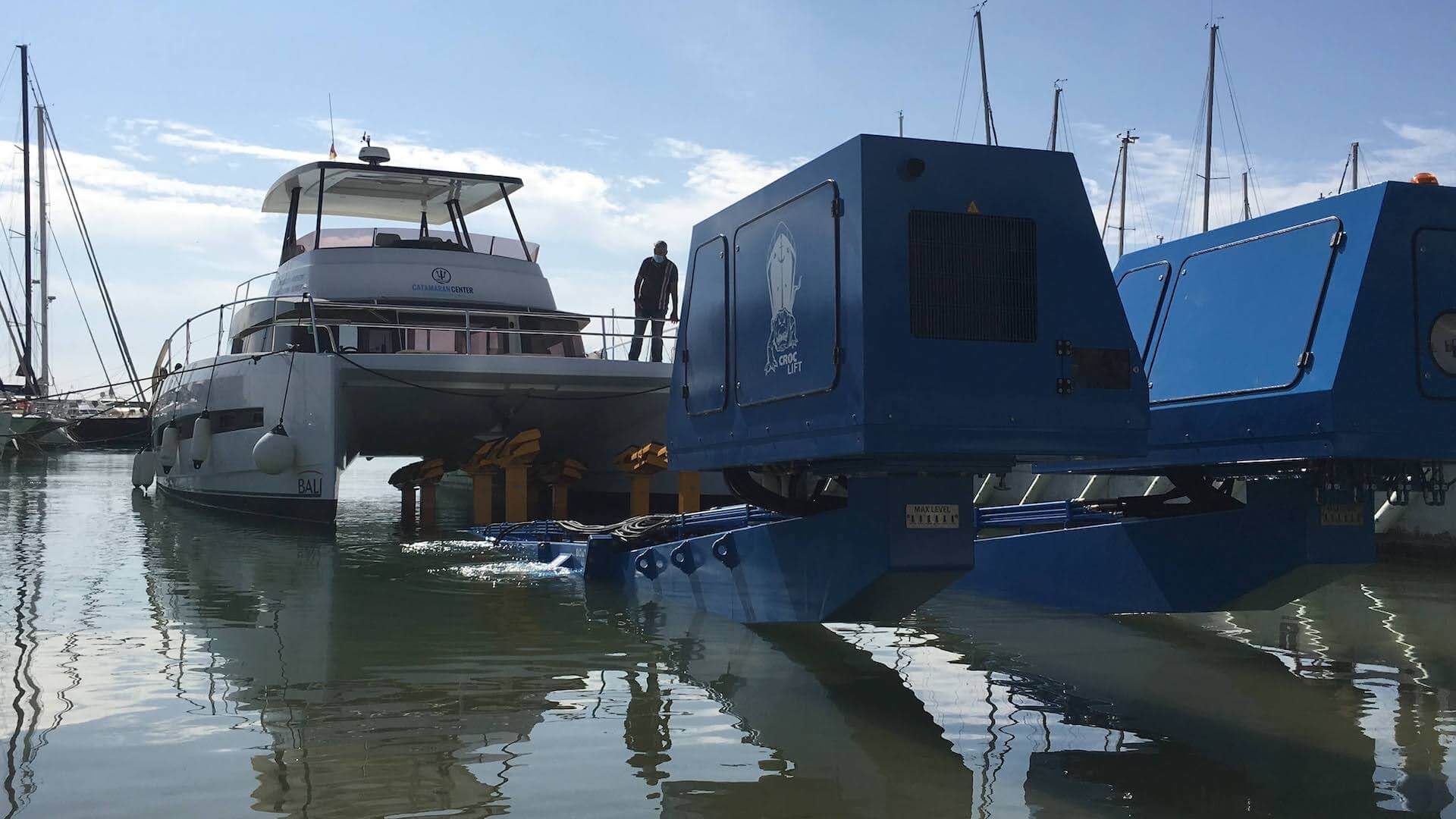

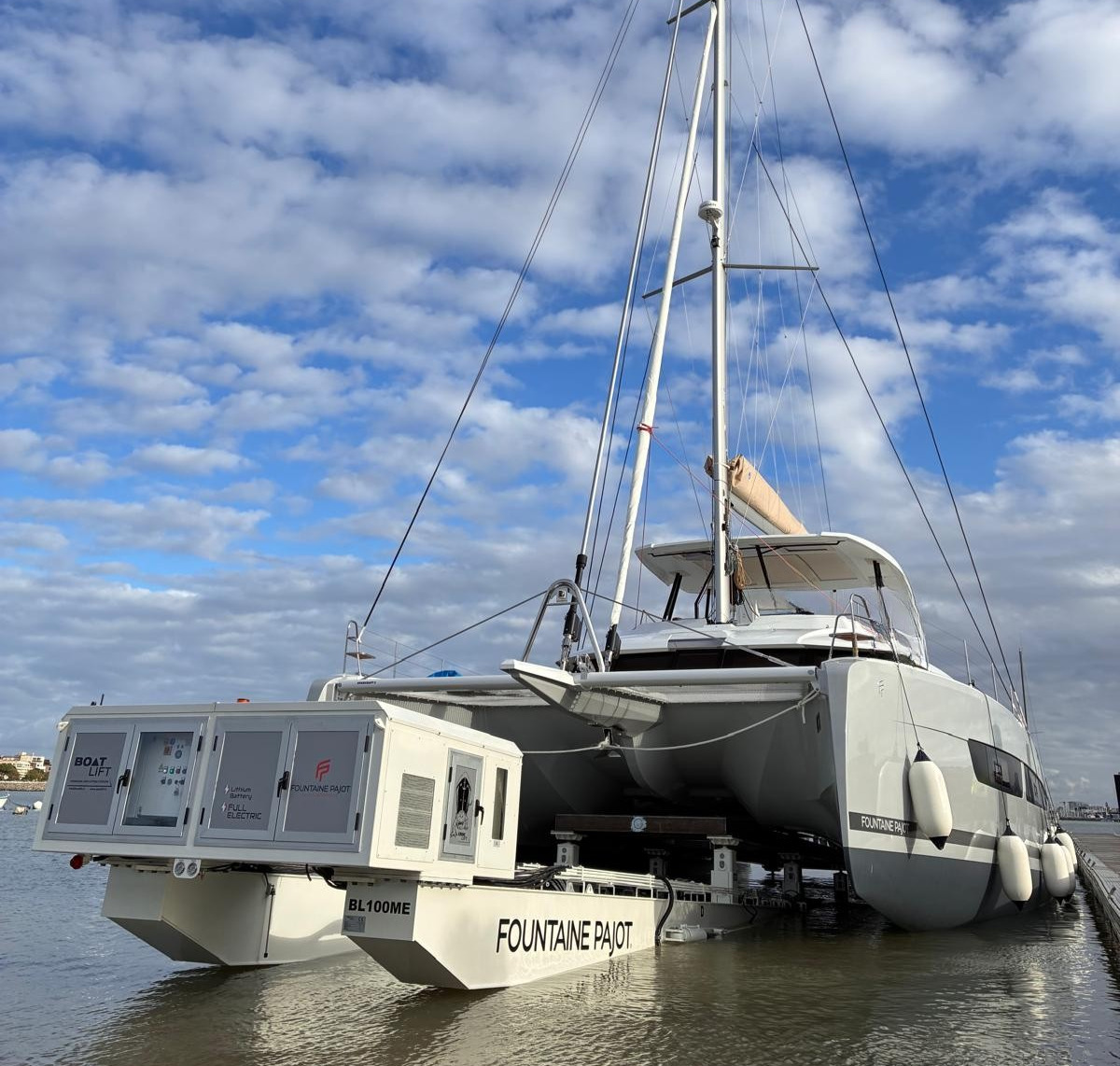

AMPHIBIOUS TRAILERS
The specific design of CROC LIFT amphibious trailers allows easy hauling and launching operations, for single-hulls and catamarans as well. Thanks to the gripping central and lateral points and to the specific patented supports, it is possible to lift boats directly from water without stressing hulls. On dryland, the trailer ensures maneuverability and optimization of stocking spaces.
MAIN FEATURES
Maximum gradient >10%
Variable track by telescopic hydraulic expansions system
Anti-corrosion painting compliant to C5m cycle
Radio remote control with proportional control system
Lifting by double-effect cylinders on each wheel-group
Self-leveling system for maximum load stability
Hydraulic supports on each spar
Electrical supply by 12 VDC battery
Double proportional motion speed unloaded / loaded
Pneumatic tyres
Front and rear steering wheels
Filtering of system hydraulic oil

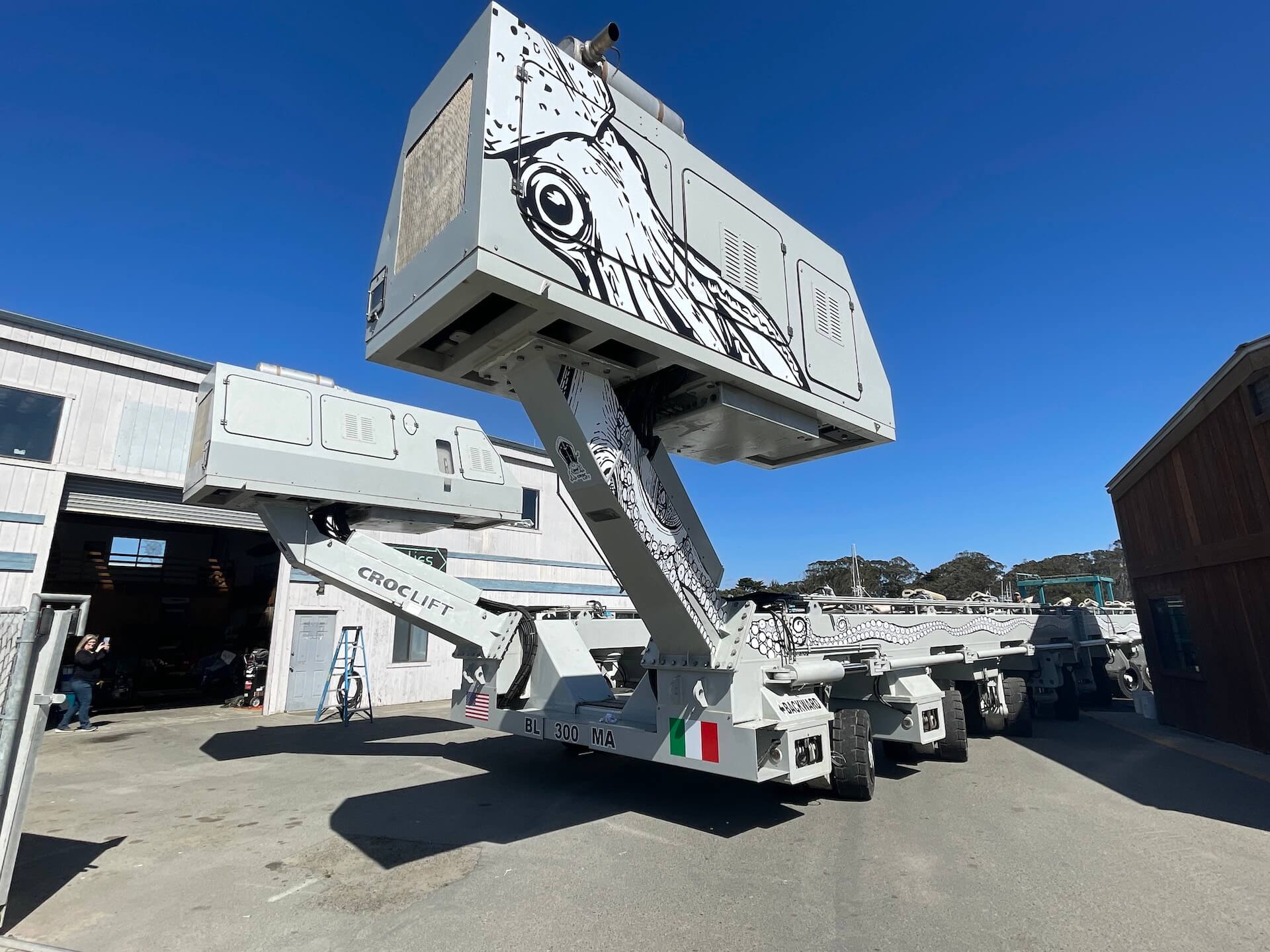

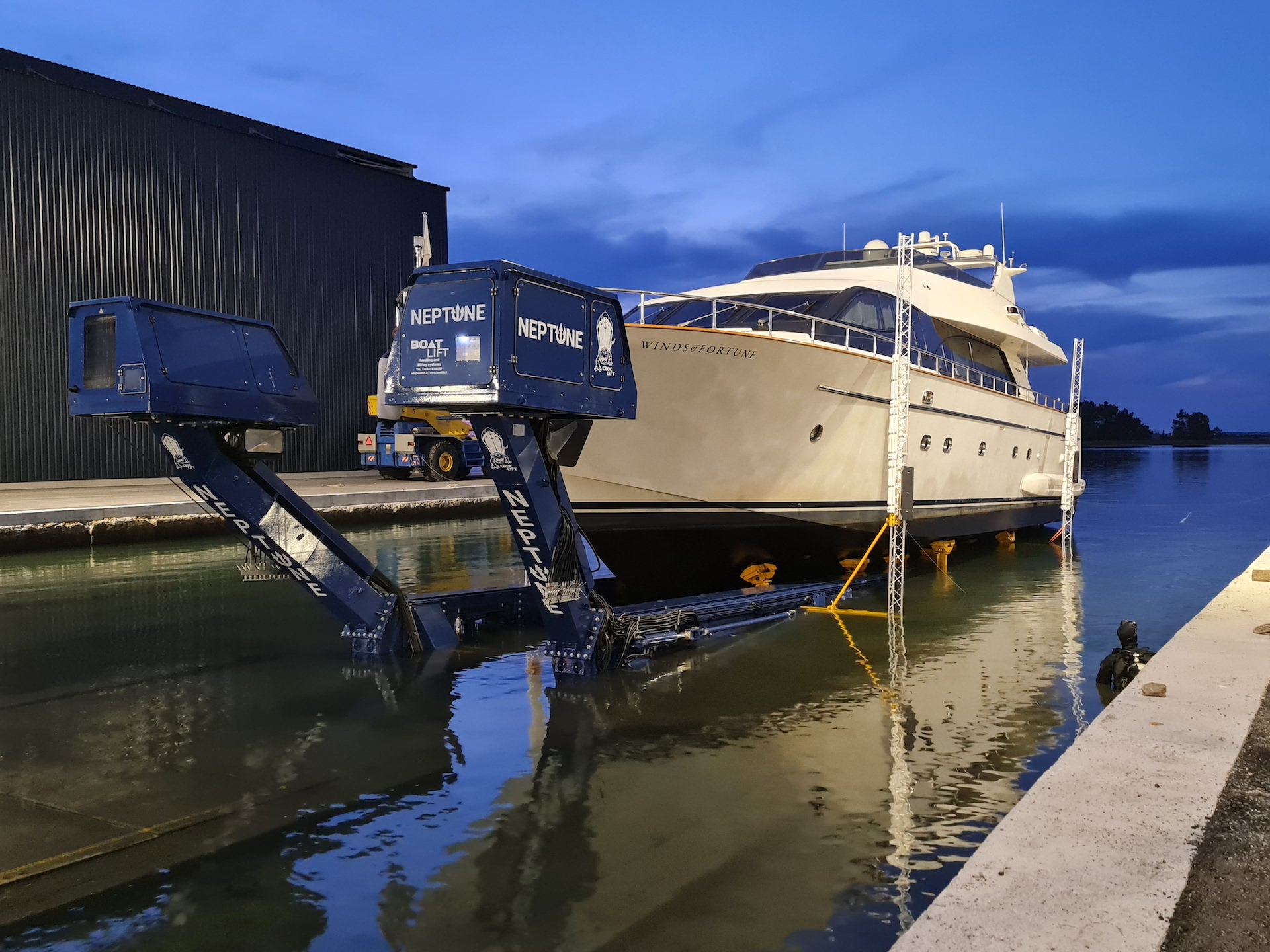

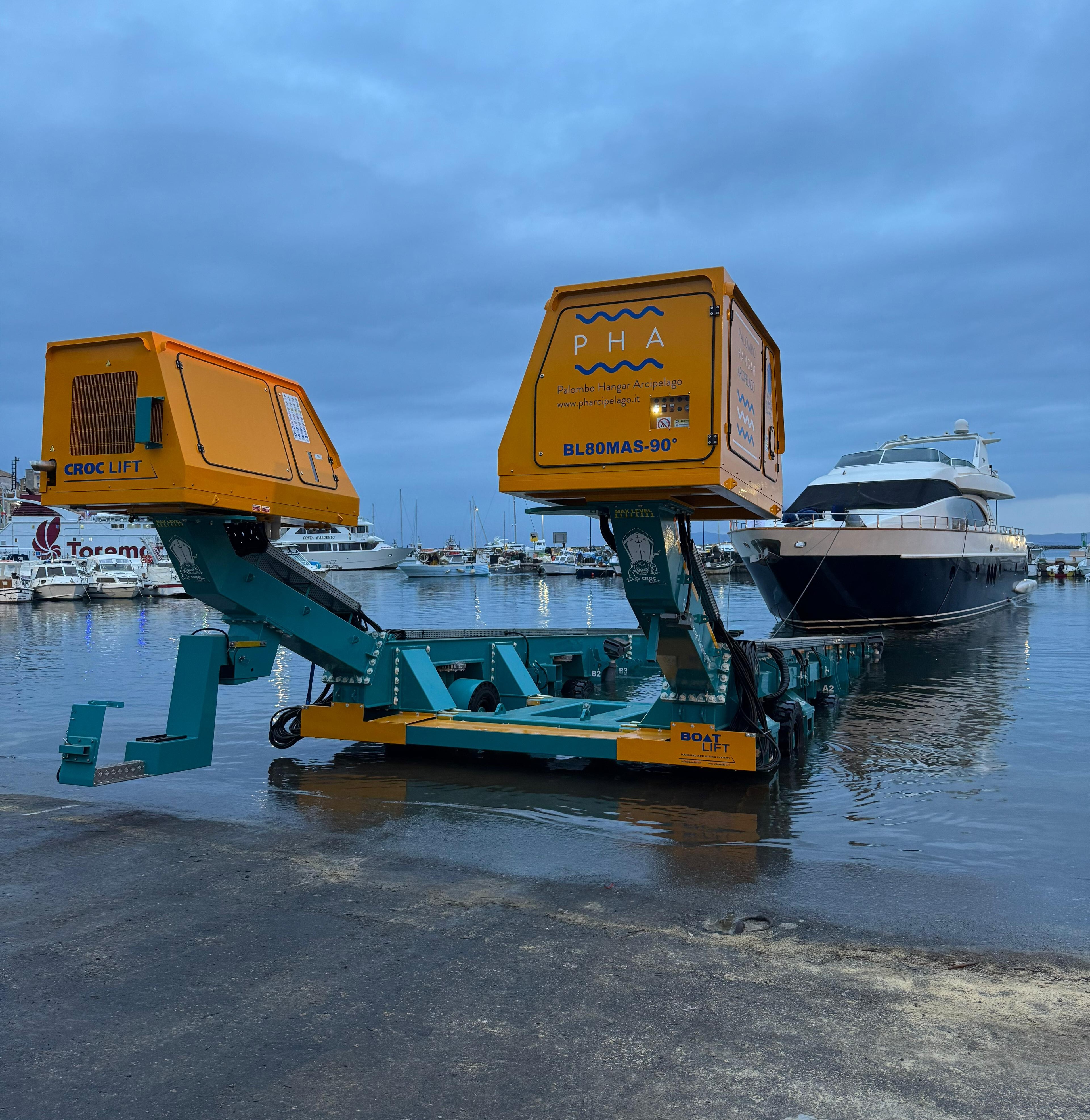

AMPHIBIOUS TRAVEL LIFTS
MAIN FEATURES
Maximum gradient >10%
Tailored dimensions according to customer’s needs
Soundproofed diesel engine compliant to current regulations
Anti-corrosion painting compliant to C5m cycle
Independent and electronically synchronized winches
Load balancing 60% / 40%
Double proportional lifting speed unloaded / loaded
Lifting belts with safety factor 7:1
Double proportional motion speed unloaded / loaded
Industrial tyres, air-inflated or equipped with specific filling
Pipes and fittings in galvanized painted steel
Filtering of system hydraulic oil
Electrical supply by 12/24 VCC battery
Remote assistance in real time by M2M system
